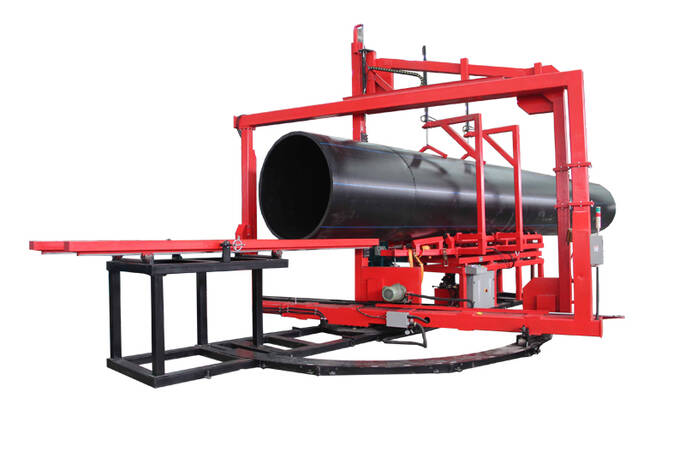

LHC2000 hydraulically operated pipe saw is specially used to prepare pipe sections of PE, PP and other thermoplastic materials, and is used to manufacture elbows, tees, crosses, Y-shaped pipes, etc. The diameter range of pipes is 1200 to 1600 mm. Cutting angle up to 67.5 degrees, Reducing the speed of the saw is hydraulically controlled, using Swedish saw blade and limit switch to ensure safety.
Parameter of LHC 2000 Pipe Saw
MODEL | LHC2000 |
Cutting Range | 630~2000mm |
Driver motor Power | 6KW |
Hydraulic unit power 1 | 2.2KW |
Hydraulic unit power 2 | 1.1KW |
u Max. line speed | 195m/min |
Total power | 9.3KW |
Voltage/Frequency | 3 phase 380Volts/415/450Volts, 50/60Hz |
